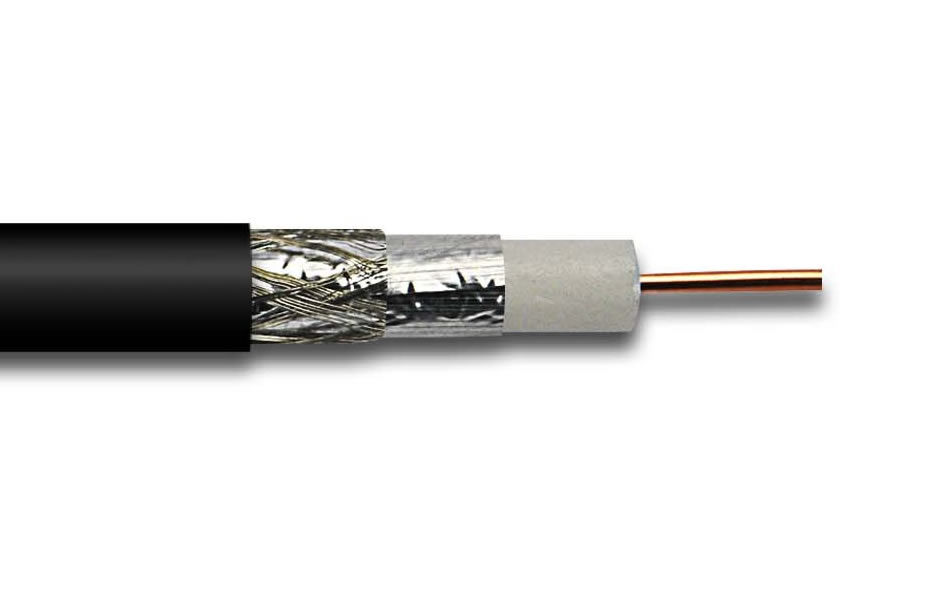

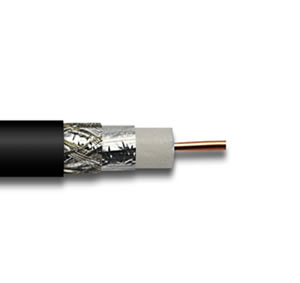

100m High Grade RG59 Co-ax Cable For Video

Product ID CAB080
100m High Grade RG59 Co-ax Cable For Video #1100m High Grade RG59 Co-ax Cable For Video #2
Price : £39.99 (£47.99 Inc. VAT)
  • High grade Anti-hum RG59 for maximum performance over long runs
  • Low loss 2.5dB per 100m
  • Solid copper core for long runs
  • Bonded aluminium foil
  • 0.12x48 Aluminium wire shield
  • With two colours to choose from white or black to blend in to most applications
  • RG59 is a co-ax type cable ideal for bringing video signals back from cameras to other CCTV equipment such as DVRs, quads and monitors
  • 1 Year Warranty

RG59 is a co-ax type cable ideal for bringing video signals back from cameras to other CCTV equipment such as DVRs, quads and monitors.

It is a low loss cable losing only approximately 2.5dB of video signal over a 100 metre run. As a rule of thumb, the maximum loss should be kept under 6dB. This means a massive cable run of 240 metres can be achieved without the use of an amplifier. Using one of our video amplifiers (code: CCT210 and CCT214), runs of up to 500 metres can be achieved.

The RG59 co-ax has a 0.7mm copper core to give maximum video quality on longer cable runs and is shielded with a glued foil sheath to protect against interference. This also prevents the problem of loose foil shorting to the centre-pin.

Your CCTV cameras will still need a power source to operate so they will need to be powered locally or by running a seperate power cable. We would reccomend purchasing our RG59+2 cable which will allow you to run the power and video down one cable.

This cable is supplied in 100M rolls.

TECHNICAL SPECIFICATION: CAB080
Sheath Colour Black
RG59 Core 0.7mm Sold Copper Core
RG59 Shield 0.12x48 Aluminium Wire
RG59 Foil Bonded Aluminium
Outer Sheath PVC
Pallet Quantity 96
Cable Length 100 Mtr Roll
Dimensions 100m Roll x 235mm Roll Dia

Delivery & Returns Information


Product Reviews

No Reviews For This Product.

Click to review this product

Recommended products

RF CCTV Modulator With Scart In
Price Email for pricing
0.5m BNC to BNC Extension Cable
Price £2.99 (£3.59 Inc. VAT)
1.2m BNC to BNC Connection Cable
Price £3.49 (£4.19 Inc. VAT)
2m BNC To BNC Cable Lead
Price £4.49 (£5.39 Inc. VAT)
5m BNC to BNC Video Extension Cable
Price £5.99 (£7.19 Inc. VAT)
10m BNC To BNC Extension Lead
Price £9.99 (£11.99 Inc. VAT)
20m BNC To BNC Video Camera Cable
Price £12.99 (£15.59 Inc. VAT)
20m Plug & Play BNC Video and Power Cable
Price £14.99 (£17.99 Inc. VAT)
20m Cable For Power, Video And Audio
Price £19.99 (£23.99 Inc. VAT)

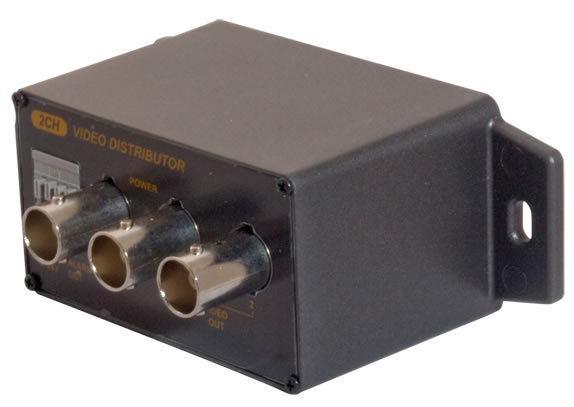

Video Distributor 1 Input 2 Outputs
