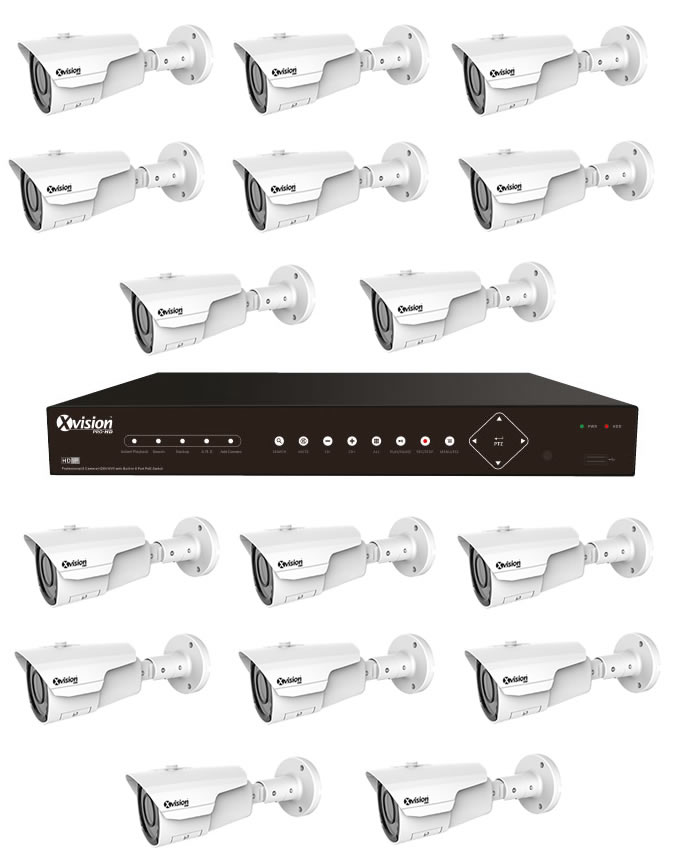

Extremely high resolution CCTV system with multiple cameras This system is suitable for those looking for a highly secure, multi-camera set up with exquisite image quality and advanced detail capture. 8 Xvision Bullet cameras, fitted with advanced 5MP sensors and DSP, are capable of transmitting images at nearly twice the resolution of 1080P Full HD alternatives - with a massive 12x the detail level of analogue CCTV cameras. Even in Real Time streaming mode pictures are crisp and clear. The obvious advantages of having these high performance cameras as part of a CCTV system are further bolstered by the fact that bandwidth use is not correspondingly increased when compared to standard Full HD digital rivals. This impressive feat is achieved through advanced compression and bandwidth management capabilities.
The cameras’ lenses allow for a wide viewing range and the high quality image consistency is maintained due to additional features such as 60m IR night vision with a Smart lighting intensity function and lifelike colour reproduction. Smart Video Analytics is another useful feature of the Bullet cameras which enables detection of specific objects and zonal or perimeter breaches. The cameras can be used for both indoor and outdoor purposes, with an IP66 weather resistant rating adding to their flexibility of use. The cameras have a tamper resistant design with all cables and connections concealed and protected by a premium, white coated metal housing.
To pair with the 8 Bullet cameras is an efficient and versatile NVR which stands out amongst its competitors; featuring high resolution capabilities up to 5MP (2560x1920) and excellent functionality. With some NVRs high image quality and performance can come at the expense of storage space and bandwidth management, but with this NVR H264 compression is fully integrated and allows for its advanced operations without increasing costs in these areas. Real Time recordings (at 30fps per camera) are delivered with 200Mbps recording bandwidth.
The NVR features a hard drive which far exceeds the performance limitations of desktop varieties and contains only top quality components, which enables it to manage a 24/7, professional CCTV application. A choice of pre-installed hard drive sizes are available, with 12TB being the largest.
This CCTV system may be advanced, but installing and using it is easy, owing to its simple Plug and Play user-centric design. Included with the NVR is free Windows and OSX software which provides all the necessary utilities for the viewing and management of recordings, along with backup over LAN or Internet.
The NVR is compatible with Dropbox cloud recording (with motion activated event support) and hardware functionality is excellent with, amongst other things, connections for both VGA and Full HD 1080P HDMI monitors (which can even be used simultaneously if desired). USB connectivity is also incorporated within the NVR, enabling a simple, streamlined USB backup procedure.
Additional features and specifications
The cameras:
• High quality streaming at: 5 MP 2592x1520P and 20fps; 3 MP 2048x1536P and 1920x1080P and 30fps in Real
Time, utilising H265, H264 or MJPEG compression technology.
• Three separate streams to manage bandwidth efficiently.
• 2.8 to 12mm lenses and a wide viewing angle selection between 23 and 92°.
• True Day/Night (ICR) works in combination with a Digital Slow Shutter, providing 0.0003 lux light sensitivity,
even when leds are not in range or switched off.
• Web-based control of viewing and calibration features, including digital noise reduction and privacy masking.
• 100MB Ethernet port, which is PoE compatible and offers high speeds.
• 3 Year Warranty
The NVR:
• Features a built-in PoE switch.
• Supports multi streams.
• Easy local control via the front panel keypad and USB Mouse.
• Features instant playback, search, backup and Auto Remote Setup (with QR code).
• Secure feature access control through user admin level restrictions.
• Web-based viewing and playback, compatible with mainstream internet browsers.
• A simple internet access setup procedure with no need for port forwarding.
• Event detection alert system via email (with a camera snapshot).
• High Speed ports, consisting of 100MB PoE camera ports and a 1GB Ethernet port.
• Smart Network Detection feature, enabling network management to ensure stability.
• Alarm output and 8 alarm inputs.
• 3 Year Warranty with 1 Year Advanced Replacement.
Please tick the option above, as required, to ensure that you have all you need to install this CCTV system:
1. No cables required (I already have all necessary cables).
2. 25m Plug and Play Ethernet Cables for each included camera.
3. 1 x 305m cable roll with RJ45 connectors.
